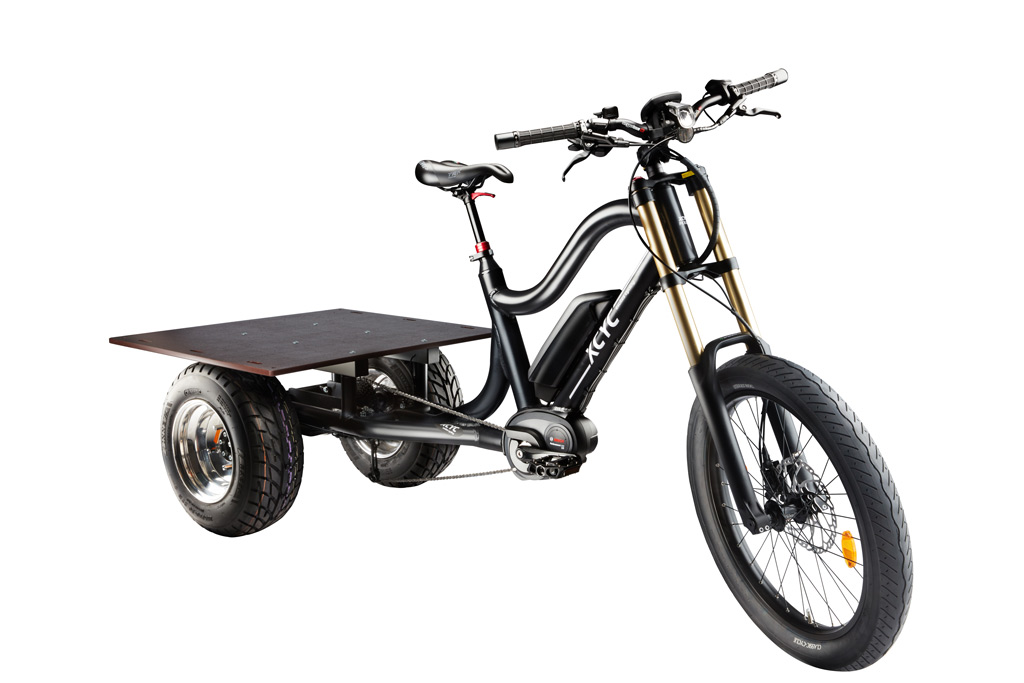

XCYC PICKUP Allround 4.0 ECO
– Motor – Bosch Performance CX 250, max. torque 85 Nm, rated power 250 watts, up to 2 km/h
– On-board computer – Bosch Intuvia, handlebar mount
– Battery pack – Bosch 500 Wh / 13.4 Ah, removable
– Range – up to 65 km
– Charging time – approx. 4.5 hrs
– Frame – 2270 x 850 x 1150 mm (L x W x H)
– Gear system depending on model – 9-speed Shimano Deore derailleur / 14-speed Rohloff Speedhub internal gear hub
– Front light – Lumotec IQ MycE, 50 Lux, 6–42 V DC
– Rear light – Trelock LS 614 DUO FLAT, signal, 6–12 V DC
– Cargo area – 850 × 748 mm
– Weight – 58 kg
– Fork – cargo-optimized dual-crown suspension fork
– Turning circle – 340 cm
– Front brake – Shimano T6000 hydraulic disc brake, Ø 203 mm
– Rear brake – 2 x Shimano T6000 hydraulic disc brake, Ø 180 mm
– Mechanical parking brake for additional safety
– Electric walk-assist – yes
– Seatpost – rigid, for rider weight up to 100 kg
– Trailer hitch mount – optionally available
– Custom branding or logo – optionally available
– Front tire – Schwalbe Pick-Up 26×2.15
– Standard rear tire – Vee Rubber 094 12×3.00
– Optional rear tire – Innova Ris165/70-10
– Permissible rider weight – depends on seatpost: Safety level 4: 100 kg / Safety level 6 (Ergotec Up&Down): 110 kg
– Maximum load on the PICKUP cargo platform – 100 kg
– Permissible gross vehicle weight – 250 kg
– Permissible gross vehicle weight in Switzerland – 200 kg
– Maximum loading height – 0.70 m
– Approved trailers – all trailers compliant with DIN 15918 using "Weber" coupling system
– StVZO equipment – yes
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Mobility that works together
Whether for in-house transport, daily journeys in the depot or material logistics over the last mile: The XCYC ALLROUND is made for tasks that combine reliability, manoeuvrability and load capacity. With a permissible total weight of up to 300 kg, compact dimensions and a modular design, it offers flexible solutions for many areas of application.
The platform can be customised - with an open railing body, closed transport box or special body. Thanks to its low loading height, robust construction and stable driving characteristics, the ALLROUND is suitable for regular transport as well as for changing requirements in everyday working life.
With minimal maintenance requirements and durable technology, the XCYC ALLROUND is a sustainable transport solution for companies, depots and service providers.
Permissible total weight & legal use:
IIn Switzerland, the variant with a total weight of up to 250 kg is licence-free from the age of 16 be driven.
In Germany, cargo e-bikes with assistance up to 25 km/h are legally considered bicycles - they can be ridden without a driving licence and by people of any age provided that safe participation in road traffic is guaranteed.
Technology that thinks for itself
No traffic jams, no searching for a parking space
takes you directly to the job site
Adapts - not the other way round
through modular superstructures and flexible utilisation
Changes the area of application with you
Can be used for delivery journeys, internal transport or business trips
Driving licence free
Optional matching accessories
Technical data
- Motor - Bosch Performance CX 250 torque max. 85 Nm, rated power 250 watts with 25 km/h
- On-board computer - Bosch Intuvia, handlebar mounting
- Battery pack - Bosch 500 Wh / 13.4 Ah, removable-
- Range - up to 65 km
- Charging time - approx. 4.5 hours.
- Frame - 2270 x 850 x 1150 mm (L x W x H)
- Gearing depending on model - 9-speed Shimano Deore derailleur gears / 14-speed Rohloff Speedhub hub gears
- Front lighting - Lumotec IQ MycE, 50 Lux, 6-42 V DC
- Rear light - Trelock LS 614 DUO FLAT, Signal, 6-12 V, DC
- Loading area - 850×748 mm
- Weight - 58 kg
- Fork - Cargo-optimised double bridge suspension fork
- Turning circle - 340 cm
- Front brake - Shimano T6000 hydraulic disc brake, Ø brake disc 203 mm
- Rear wheel brake - 2 x Shimano-T6000-hydraulic - disc brake, Ø brake disc 180 mm
- Mechanical parking brake for additional safety when parking
- Electric motor push aid - yes
- Rigid seat post - up to 100 kg rider weight
- Mounting for trailer coupling - optionally available
- Individual branding or logo - optionally available
- Front wheel tyres - Schwalbe Pick-Up 26×2.15
- Rear wheel tyres standard - Vee Rubber 094 12 x 3. 00
- Rear wheel tyres optional - Innova Ris165/70-10
- Permissible rider weight -Dependent on seat post Safety level 4:100kg Safety level 6 (Ergotec Up&Down):110kg
- Permissible load on the loading area of the PICKUPs- 100 kg
- Permissible total mass (permissible total weight) - 250 kg
- Permissible total mass (permissible total weight) in Switzerland - 200 kg
- Permissible loading height - 0.70 m
- Permissible trailers - all trailers according to DIN 15918 with ‘Weber’ coupling system
- StVZO equipment - yes
See also our XCYC brochure: XCYC Brochure GE & XCYC Brochure EN
Matching bodies for the XCYC ALLROUND
XCYC Allround Reling-Aufbau
Possible options that can be added to the superstructures:
|  |
XCYC all-round transport case
|  |
Specifications for XCYC PICKUP Allround 4.0 ECO
| XCYC | |
|---|---|
| Branding/Logo | XCYC Logo or Wished logo |
| Rim variant | Standard or Tire package (Quad rim) |
| Seat post variant | rigid seat post or height-adjustable seat post |
| Rear-view mirror | without rear-view mirror set or with rear-view mirror set |
| Frame lock | Without surface-mounted lock or with surface-mounted lock |
| Front mudguard | without front fender or SKS front mudguard deep |
| Structure | ohne Aufbau |
| Uncategorized | |
| Frame color | Black matt or Desired color RAL |
