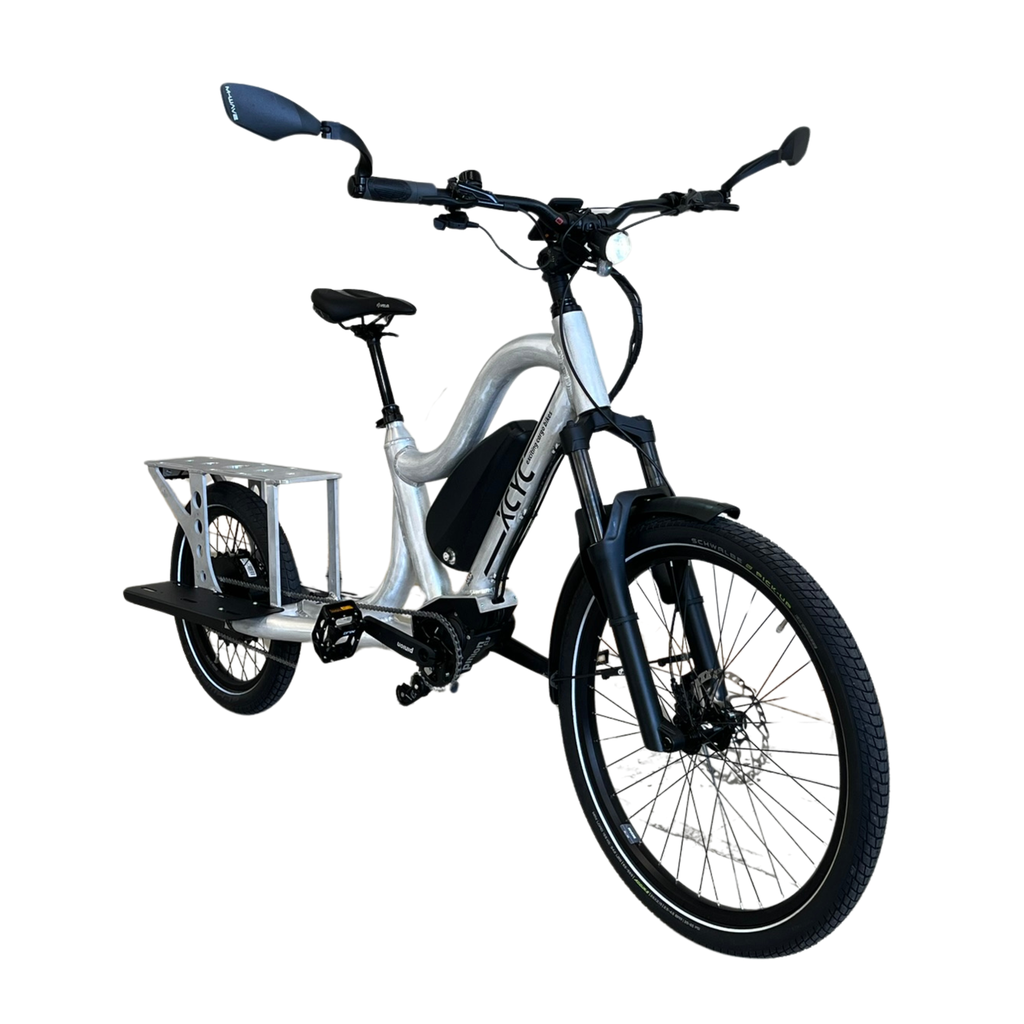

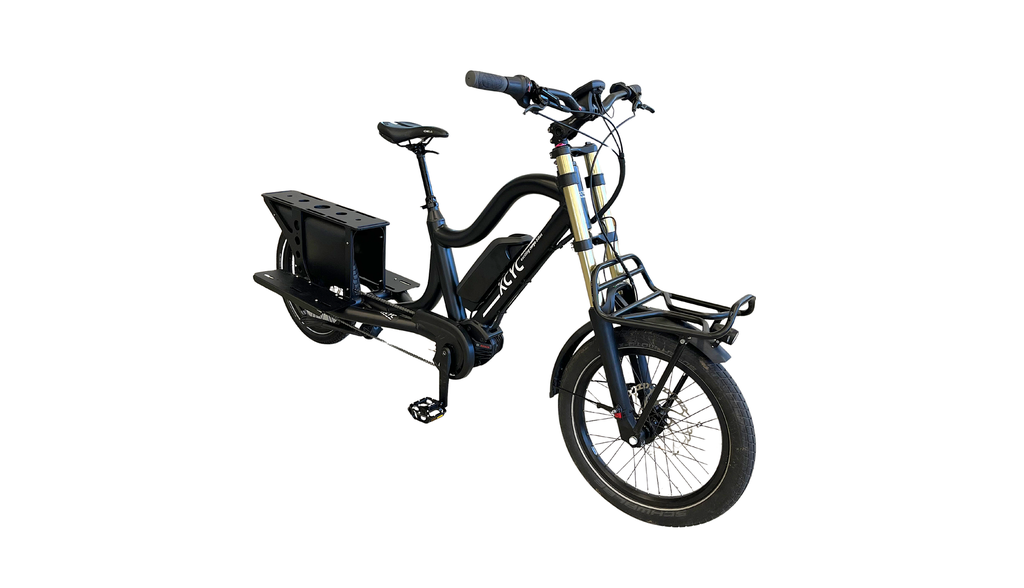

XCYC Pickup Longtail 5.0 Rohloff
XCYC Longtail 5.0 Rohloff
Standard-Ausstattung:
2270 x 850 x 1150 mm (L x B x H)
Antriebseinheit:
Bosch Performance CX Drive Unit Generation 4
Cargo Line, 250 W, 85 Nm
Bosch Performance Line Akku 500 Wh, abnehmbar
14-Gang Rohloff Speedhub Nabenschaltung
Bremsen: Shimano Deore
Cargo-Bike optimierte Doppelbrückenfedergabel
Vorderrad: Felge 26 Zoll, Reifen 26x2,15 Schwalbe Pick-Up
Hinterräder: Felge 20 Zoll
Lenkerbreite: 780mm
Lenkungsdämpfer
mit StVZO-Paket (Licht vorne + hinten, Reflektoren)
starre Sattelstütze
Standardlackierung schwarz, mat
Mobility in motion: built to work with you
In hectic city traffic, reliability is crucial. The XCYC LONGTAIL 5.0 Rohloff combines strong transport capacity with precise handling and convinces above all with its well-thought-out safety concept.
The installed Shimano Deore brakes ensure direct response and full control – whether during slow rides through narrow passages or quick stops with a full load.
With a permissible total weight of up to 180 kg, a low center of gravity for safe handling, and a powerful drive, the Longtail is the perfect partner for delivery services or the catering industry.
Permissible total weight & legal use:
In Switzerland, the version with up to 250 kg gross weight may be ridden without a license from the age of 16.
In Germany, cargo e-bikes with pedal assistance up to 25 km/h are legally considered bicycles – they may be ridden without a license and by persons of any age, provided safe participation in road traffic is ensured.
Technology that thinks ahead
Agility meets load-bearing capacity
Powerful drive
Stable and durable
Plenty of space for materials or goods, minimal space needed in traffic
Bosch CargoLine CX
Built for daily continuous use, with a robust frame and low-maintenance components
Optional matching accessories
Technical Data
Motor – Bosch Performance CX, 250 W nominal power, max. 85 Nm torque, up to 25 km/h
On-board computer – Bosch Intuvia, handlebar mount
Battery pack – Bosch 500 Wh / 13.4 Ah, removable
Range –
Charging time – approx. 4.5 hrs
Frame dimensions – 2270 × 850 × 1150 mm (L × W × H)
Transmission – 14-Gang Rohloff Speedhub
Front lighting – StVZO package (front + rear lights, reflectors)
Rear lighting – StVZO package (front + rear lights, reflectors)
Weight –
Fork – Cargo-optimized double-bridge suspension fork
Turning circle – 340 cm
Front brake – Shimano Deore
Rear brake – Shimano Deore
Electric walk assist – yes
Rigid seat post – up to 100 kg rider weight
Custom branding or logo – optionally available
Front wheel tire – Rim 26″, tire 26×2.15 Schwalbe Pick-Up
Rear wheel standard tire – Rim 20″
Permissible rider weight – depending on seat post: Safety level 4: 100 kg Safety level 6 (Ergotec Up&Down): 110 kg
Permissible total mass (gross weight) – 180 kg
See also our XCYC brochure: XCYC Brochure DE & XCYC Brochure EN
Compatible superstructure for XCYC LONGTAIL 5.0 Rohloff
Urban Delivery superstructure
|  |
| XCYC | |
|---|---|
| Branding/Logo | XCYC Logo or Wished logo |
| Seat post variant | rigid seat post or height-adjustable seat post |
| Rear-view mirror | without rear-view mirror set or with rear-view mirror set |
| Frame lock | Without surface-mounted lock or with surface-mounted lock or mit Rahmenschloss mit ABUS Granit Xplus or mit Schlossaufnahme universell |
| Front mudguard | without front fender or SKS front mudguard deep |
| Structure | ohne Aufbau |
| Produktspezifikation | |
|---|---|
| Frame color | Black matt or Desired color RAL |
